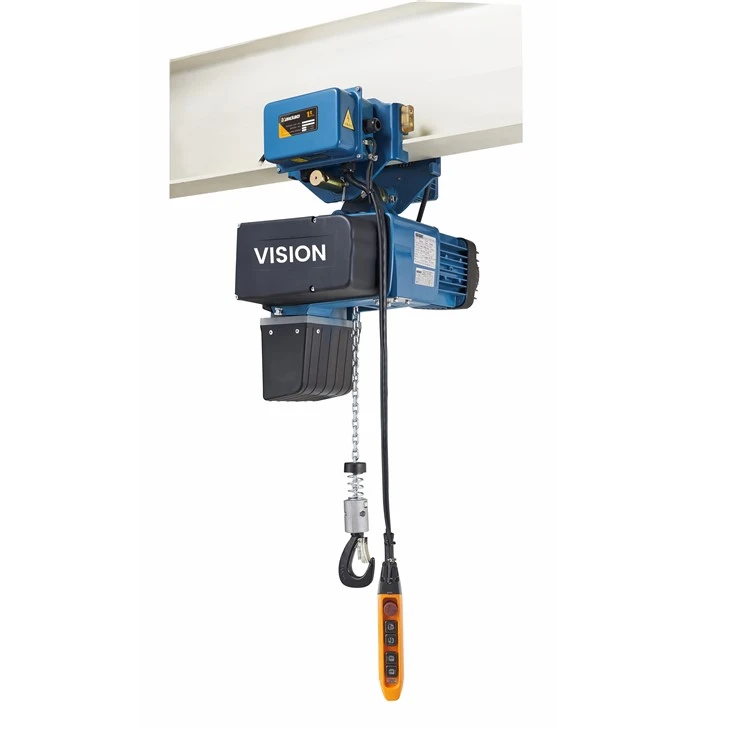

European Electric Chain Hoist

 European electric chain hoist is a compact lifting device designed in accordance with European FEM standards. Featuring a modular, compact structure, it offers a high duty cycle, smooth operation, and precise positioning. Suitable for frequent industrial lifting tasks, it can be installed for stationary lifting or paired with a manual or electric trolley to travel along a track.

•  Lifting and Traveling Function
•  Dual-speed lifting (standard): High speed for fast lifting, low speed for precise positioning of heavy loads; frequency conversion version supports stepless speed control, smooth start/stop with buffer, minimizing load swing.

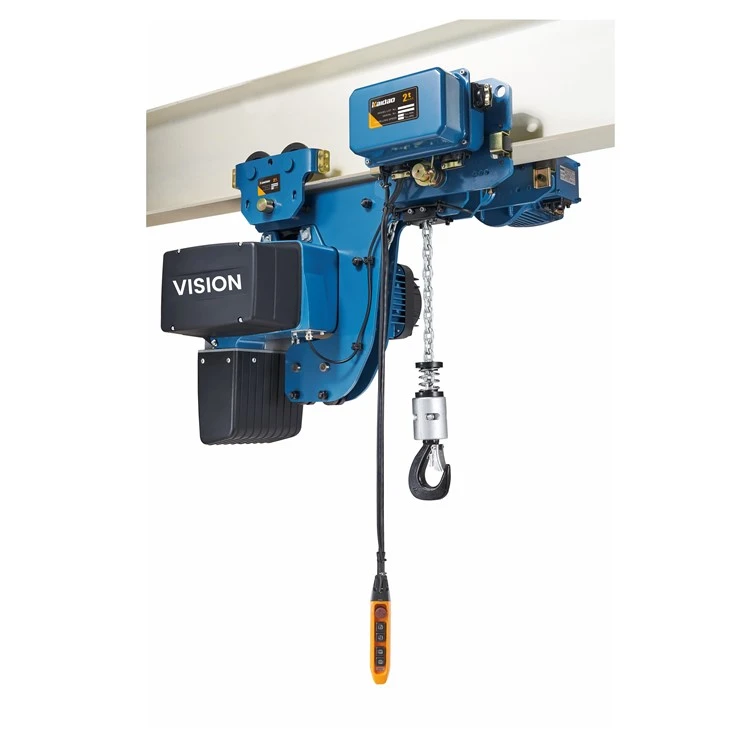

• Multiple installation options: Fixed with lifting ear or hook, low-clearance trolley, standard electric trolley, manual trolley; compatible with KBK light-duty track and I-beam tracks; low-clearance models maximize utilization of factory height space.
• Expandable functions: Dual-hook synchronized lifting, wireless remote control, hand-assisted operation, remote status monitoring, extended lifting height; explosion-proof and corrosion-resistant special versions available for hazardous environments.

• 24V low-voltage control with hand-operated switch to prevent electric shock risk; hand switch protection rating IP65.
• Upper and lower limit switches prevent overtravel and bottom collision, avoiding chain damage.
• Integrated overload protection clutch prevents equipment slippage under overload; power-loss safety brake locks the load immediately upon power failure, preventing drop accidents.
• Phase reversal protection prevents equipment startup when power is connected incorrectly; high-strength 80-grade alloy steel lifting chain offers excellent wear resistance and impact resistance.

• Lightweight aluminum housing, compact size and low self-weight, excellent sealing, dust- and water-resistant (IP55), suitable for dusty workshops.
• Gearbox and brake require long-term maintenance-free operation; sprocket plug-in design allows easy replacement without disassembling motor or gearbox, simplifying maintenance; electrical components are plug-and-play, enabling quick installation and commissioning.

•  Automotive manufacturing: Assembly of production line components, mold disassembly and assembly, material handling at workstations, precise and stable lifting to prevent damage to parts.
•  Mechanical processing and equipment manufacturing**: Disassembly of machine tools, lifting of workholding fixtures and components for assembly, high-frequency workstation lifting, compatible with KBK combined crane workstations.
•  New energy industry: Lithium battery workshops, wind turbine component assembly, low-noise, low-clearance variable-frequency hoists, meeting precise assembly requirements.
• Warehousing and logistics: Warehouse goods loading and unloading, light-duty material transfer within the warehouse, combined with suspended tracks to achieve regional material transportation.
•  Maintenance and repair: Equipment repair workshops, power plants, water pump stations, lifting for equipment disassembly and maintenance.
•  High-end equipment: Aviation, rail transit, precision instrument workshops, working conditions with high requirements for lifting stability and positioning accuracy.
• Special circumstances: Food, pharmaceutical clean workshops; chemical workshops select explosion-proof European-style chain hoists to meet explosion-proof and anti-corrosion requirements.

Compared with ordinary domestic chain hoists: European-style hoists have a higher working level (M5-M7), suitable for long-term and frequent operations; they have a more compact size, lower noise, better positioning accuracy, and are suitable for modern high-end factories; ordinary hoists are mostly used in intermittent and low-frequency lifting scenarios.

product details



Offer customized one-stop service for electric hoists

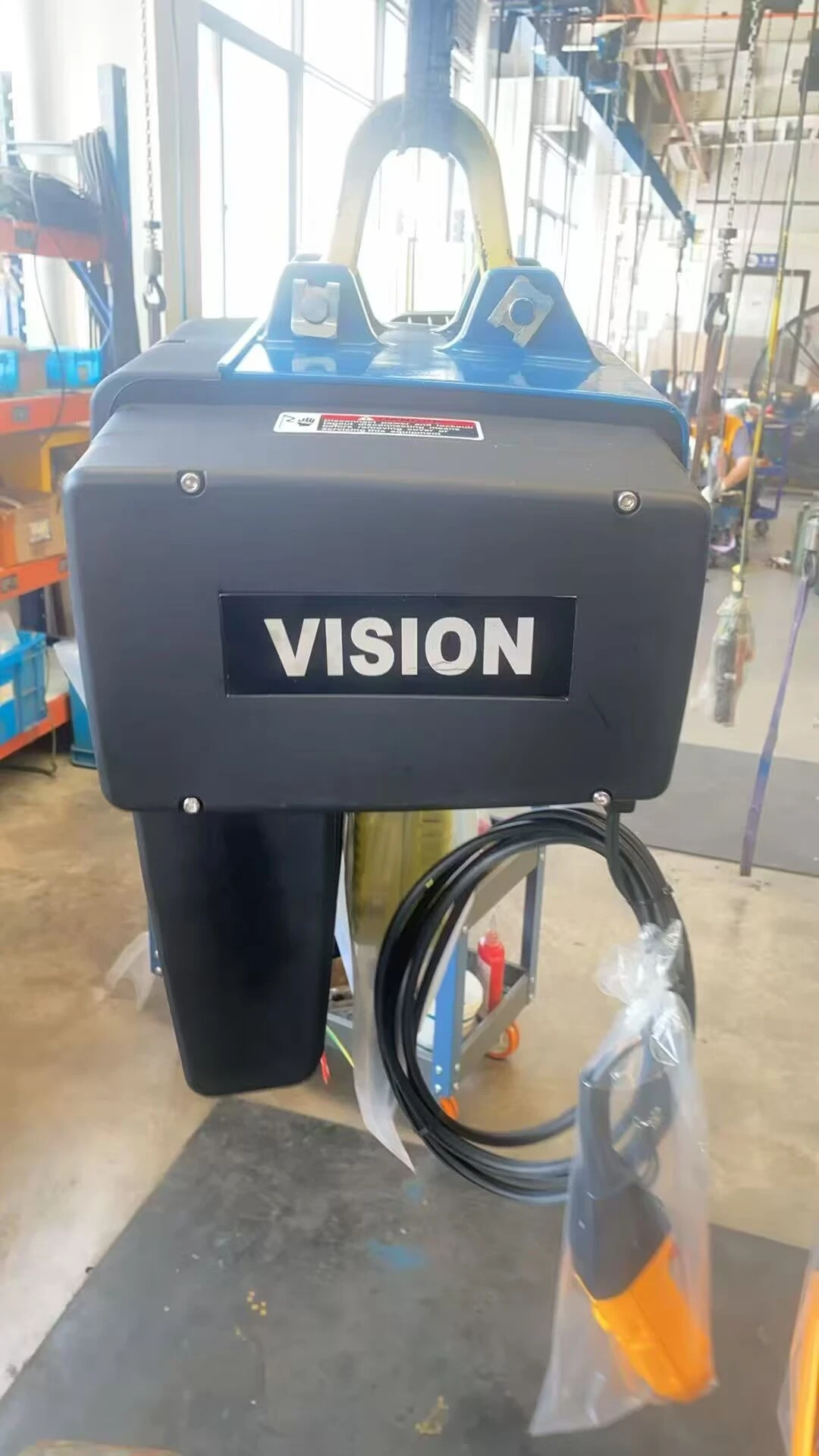

Body shell

The main body is made of high-strength black engineering plastic. The shell is securely fastened by four stainless steel hexagonal screws. It has excellent protection performance, being resistant to impact, dust and water.



The front is adorned with a black nameplate, and the white "VISION" brand logo is prominent and clear.

Top suspension mechanism

The upper part is equipped with a blue cast steel suspension mounting base, and the U-shaped large lifting ring serves as the load-bearing lifting point. The mounting base is locked by two sets of bolt components, ensuring uniform force distribution. It can be directly hung at the lifting point for use, or it can be modified and combined with the running trolley to achieve mobile lifting operations.



Above the base, there are Chinese and English safety warning labels, indicating safe operation procedures and risk warnings.

Frequency conversion control system

It can achieve soft start and soft stop for the lifting and running mechanisms, reducing lifting impacts, suppressing load vibrations, and improving the positioning accuracy of heavy objects; it can flexibly adjust the lifting and running speeds to adapt to high-frequency and precise lifting conditions.



The frequency converter integrates multiple protections such as overload and overcurrent, enhancing the overall operational safety of the machine. It is widely used in production line assembly and the lifting of precision workpieces.

Handle button

It adopts industrial‑grade engineering plastic housing with orange‑black color scheme, featuring excellent impact‑resistance and oil‑resistance for harsh workshop conditions. A red emergency‑stop button is located on the upper part for immediate power cut‑off in emergency situations. Two function buttons below are used for hoist up‑and‑down operation.



It works with 24V low‑voltage control circuit to guarantee operator safety. Strain‑relief design at cable entry prevents internal wire breakage caused by pulling force. This pendant serves as local manual control unit for the hoist, and can work together with wireless remote controller for dual‑control option.

European Type Electric Chain Hoist - Standard Specifications



Built & Tested in Our Own Factory

Every hoist is manufactured, inspected and load-tested in our facility - backed by real factory evidence you can trust.



Electric hoist assembly workshop



The technician is performing wiring work inside the electric control cabinet. The blue mechanical main‑body with gear reduction unit is shown beside. Contactors, limit switches and other electrical components are installed inside the open control box. The operator routes and connects power and control cables following electrical drawings.

Swing-arm drilling machine for processing electric hoist components

The swing-arm drilling machine is used to process the components of the electric hoist. It completes the drilling of positioning holes and installation holes, ensuring the accuracy of the hole positions and improving the assembly accuracy of the components, thereby enhancing the manufacturing quality of the product.

Welding workshop for electric hoist structural components

High‑quality welding ensures sufficient weld strength and structural rigidity for hoist drums, which is a critical production procedure to guarantee the load‑bearing performance of electric hoists.



Our motorized wire rope hoists are trusted across a wide range of heavy industrial sectors.

Established in 2014 and headquartered in Hangzhou, China, Hangzhou New Vision is a specialized manufacturer and supplier of industrial lifting solutions. Strategically located with convenient logistics access, we serve global clients with reliable, high-performance hoisting equipment.



Q1: What working standard does your European hoist follow?

A: It follows FEM 9.511 European standard, working class M5, compact low‑headroom modular design for heavy‑duty frequent workshop operation.

Q2: Is it variable frequency drive for lifting and travelling?

A: Yes. Both lifting motor and trolley travelling motor adopt VFD variable frequency drive, soft start & soft stop, reduce load swing during operation.

Q3: What is your MOQ? Can we order 5 sets for trial order?

A: Our MOQ is 1 set. 5‑sets trial order is fully acceptable for this model.

Q4: What trade terms can you offer? EXW / FOB?

A: We support EXW, FOB Shanghai, CFR & CIF. FOB Shanghai price is recommended for your reference.

Q5: How many days production lead‑time for 5 sets?

A: Production lead‑time is 15‑18 working days after receiving deposit.

Q6: What is warranty period? What spare parts are included within warranty?

A: 12‑month whole‑machine warranty from B/L date. Wearing consumables (brake disc, load chain) are excluded. We provide free technical support; defective non‑wear parts will be supplied free of charge under warranty period.
