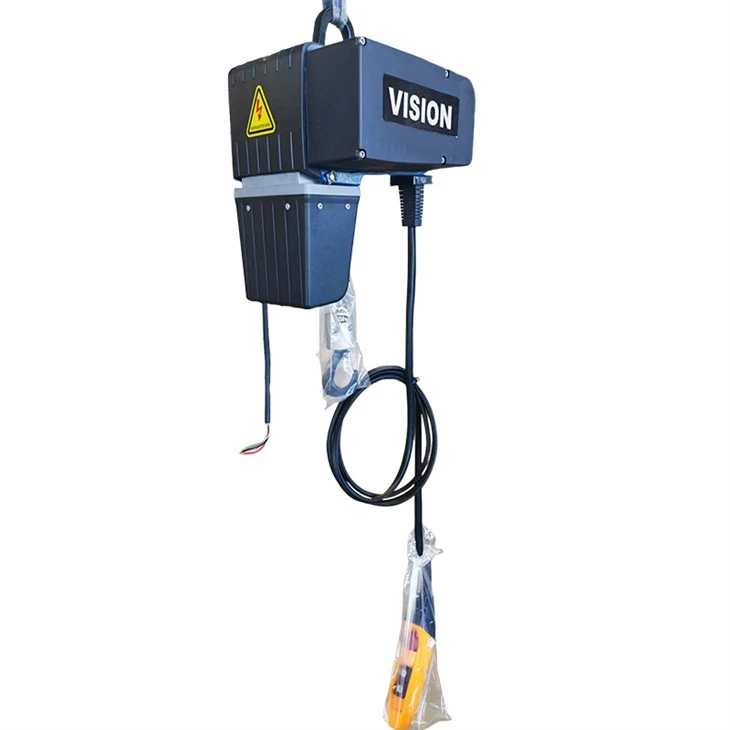

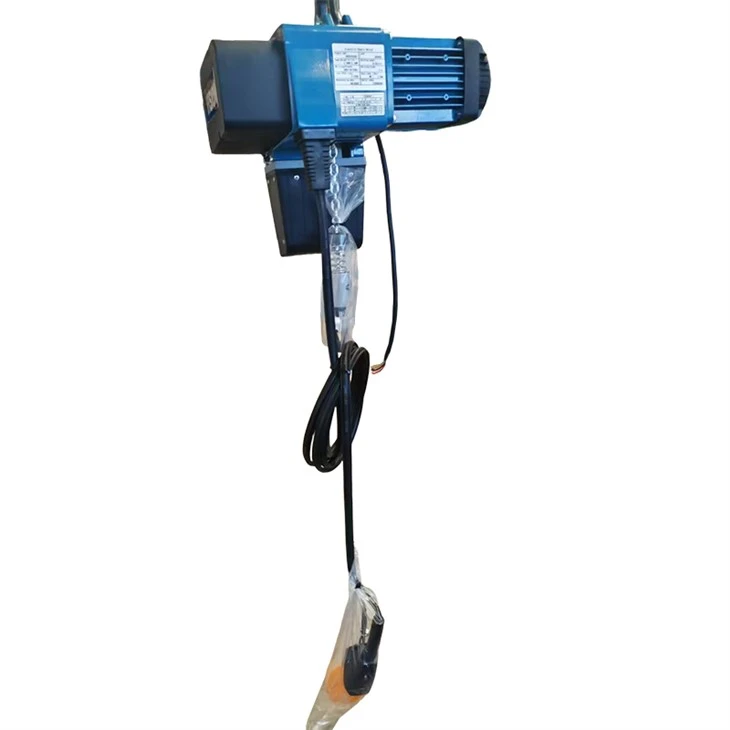

250KG Fixed Electric Chain Hoist

250 kg Fixed-Mount Electric Chain Hoist | NVFKD002501

It's Ideal for applications requiring a stationary lifting point, this fixed hoist is engineered for suspension via lifting lugs or hooks. Its integrated compact frame houses the motor, reduction gearbox and control assembly, low-headroom performance. It retains ample hook travel even within buildings with limited overhead height. Well suited for high-end facilities, this model is widely deployed across assembly lines and robotic automation production systems.

Customers usually purchases 6pcs or 12pcs or more for their assembly lines. And if open new plants will order repeat order again , which save lots of labor cost for them .

We have clients from North America Canada /USA, south America Algeria/Chile/Peru/Brazil etc.

This short video demonstrates the operation of the Vision European Type Chain Hoist with a 250kg capacity and a 4-meter lifting height in a workshop setting. It showcases the hoist's compact European-style design, smooth lifting and lowering performance, and efficient material handling capabilities through an operator's handheld control.

• Stationary suspension. No trolley is fitted. The load rises and falls along one vertical axis, which suits press tending, filling heads, single-position assembly and other repetitive spots.

• Adjustable hook path. Three to nine metres, matched to the height of your bay.

• Motor protection. IP55 enclosure keeps dust and water spray out; Class F

• insulation tolerates hot windings.

• Chain that lasts. Links are heat treated, zinc plated and given a supplementary surface coating to resist grit, humidity and coastal air.

• ISO-based engineering, backed by a one-year warranty on core components.

• each hoist sits fixed in a plywood case, pendant, chain bag and manual in separate compartments.The 250 kg / 6 m unit ships at [L x W x H] mm, [net] kg net, [gross] kg gross.

1. Worked example: a station lifts a 180 kg fixture from floor to a bench 2.5 m high, under a beam at 4.3 m. Allow 0.6 m for the hook block, so hook travel is about 3.1 m and the 6 m version still leaves margin. At 8 m/min the raise takes roughly 23 seconds; 2 m/min handles the last few centimetres.





• Model code: NVFKD002501

• Capacity: 250 kg

• Hook travel: 3 to 9 m

• Lifting speed: 8 / 2 m/min

• Motor output: 0.4 / 0.1 kW

• Motor speed: 2880 / 720 rpm

• Rated voltage: 380 V, 50 Hz, 3 phase (220 to 480 V available)

• Enclosure: IP55

• Insulation class: F

• Operating temperature: -40 to +60 degrees C

• On an assembly line it hangs over one station, lifting sub-assemblies at 8 m/min, then dropping to 2 m/min to seat them.

• The housing is formed in aluminum, which keeps the unit light, compact and low in dead weight. Sealing is of a high standard, with an IP55 rating against dust and water, so dusty workshops pose no problem. The gearbox and brake are built to run long-term with no maintenance. Sprockets mount on a plug-in principle, so a worn one can be swapped out while the motor and gearbox stay assembled, which keeps servicing straightforward. Electrical parts are plug-and-play as well, so installation and commissioning are finished quickly.

• Hang it on a monorail, a slewing jib, a KBK aluminium track or a dedicated beam. Plants rely on this capacity for assembly benches, repair bays, small sub-assemblies and wind-turbine service work, where a light and compact unit is easier to handle than a larger hois

European-style chain hoists vs. ordinary domestic units Working level: M5–M7, supporting long-term and frequent operation. Build and performance: more compact, quieter running, better positioning accuracy - a match for modern high-end factories. Ordinary hoists: generally reserved for intermittent, low-frequency lifting.

Before you order​
Three things decide whether this hoist fits your building: the beam, the power and the headroom. Measure the beam's safe working load first, because a 250 kg load puts roughly half a tonne on the structure once the block and chain are counted. Then check that the supply at the beam is three-phase; 380 V at 50 Hz is what most of our export units are wound for. Finally, stand under the beam and look up. The hook has to reach the floor without the body fouling a truss.

 Installation day​
Installation need two people. Fix the suspension point first, then lift the hoist with a sling through the top of the frame, never by the chain. Hang the chain bag clear of the load path and leave enough slack in the pendant cable that the operator can stand to one side of the load. Power up with the hook empty: press up and down once, check that the upper limit stops the hook with room to spare, then run a full lift with no load. Only then put weight on it.

When this is the wrong hoist​
This is a fixed hoist, so it lifts in one spot. If the load has to travel along a beam, buy the trolley version instead; fitting one later is not a straight swap. It is also the wrong tool for continuous production, where the hoist runs all shift. At 60% duty it needs the other 40% to cool, and a unit that never rests will say so at the brake and the contactors. For that kind of work, step up to a heavier frame.

Chain care, without fuss​
The chain tells you how the hoist has been treated. Once a month, run it through a gloved hand and look for flat spots, twisted links and rust at the joints. Wipe it rather than soaking it; a thin film of chain oil is enough, and too much collects grit. If a link is deformed, replace the chain, not the link. Keep the bag clear of swarf, because a bag full of turnings wears a chain faster than load does.

What arrives in the crate​
Each crate holds the hoist, the pendant with its cable, a chain bag, the hook block and a paper manual with the wiring diagram folded inside the cover. The chain is shipped greased and the electrical cover is sealed, so you do not need to open it before installation.

Two questions we get every week​
Can I hang it from an I-beam? Yes, provided the beam or the trolley under it is rated for the load and the suspension point sits plumb above the hook. Can I use it outdoors? The motor is IP55, which keeps dust and water jets out, but that is not a marine or immersion rating. Under a roof it is fine; in driving rain on a coast it is the wrong choice.

What we keep on the shelf​
Keep one spare chain and one contactor on the shelf and you will not lose a shift to either. The parts that go first on this class of hoist are the ones that move: the brake, the contactors, the pendant cable at its strain relief. Everything else tends to outlast the building it hangs in. A photo of the nameplate gets you the right part the first time.

product details



Offer customized one-stop service for electric hoists

Vertical Single-point Hoisting

A single vertical axis. With no trolley on the frame, the load tracks one line up and down. That is exactly what press loading, drum filling, bench assembly and other one-position tasks require.

Double speeds

Two speeds, one motor. The pole-changing motor produces both fast stroke and  slow stroke, giving 8 m/min and 2 m/min when lifting. Steel body very strong.use high speed when non load and low speed when on load.

VFD speed regulation system

Gentle acceleration and deceleration are applied to both the lifting drive and the long-travel drive. Load pick-up becomes smoother, impact forces in the frame are reduced, oscillation of the suspended load is damped, and repeatable stopping points are achieved with heavy workpieces. Both motions accept continuously variable speed settings, suiting fast-cycle operation as well as slow, accurate placement. Integral safeguards against overload, over-current and related faults sit inside the inverter, adding a layer of protection to the machine. Assembly work carried out on production lines, together with the handling of precision components, are typical applications.

Pendant Control Station

An orange-and-black moulded plastic case, tough enough to take impacts and resist oil, houses the controls for daily workshop use. Press the red button at the top and the power is cut at once; the two buttons underneath handle raising and lowering.



Also can change remote control if you need , can use one transmitter one receiver or two transmitters one receiver depends on your worksite situation.

European Type Electric Chain Hoist - Standard Specifications



Built & Tested in Our Own Factory

All hoists are fully produced, inspected and load-tested within our factory, with tangible test documentation to support reliable quality assurance.



Electrical Cabinet Wiring & Assembly



Wiring work is under way inside the electrical control cabinet, with a technician making the terminations. Beside the cabinet sits the blue mechanical main body, fitted with its gear reduction unit. The control box stands open, and the contactors, limit switches and remaining electrical hardware are mounted inside it. Power cables and control cables are laid out and joined by the operator in line with the electrical drawings.

Precision Component Drilling





This radial drilling machine is deployed for machining key components of electric chain hoists. It performs precision drilling for locating holes and mounting holes, guaranteeing accurate hole positioning. This tight tolerance control elevates component assembly precision and ultimately delivers superior overall product build quality.

Precision Drum Welding



We adopt high-grade welding techniques to achieve dependable weld strength and structural rigidity on hoist drums. This core manufacturing process is fundamental to securing the rated load performance of our electric hoists.



Heavy industry is where our motorized wire rope hoists do their work

Hangzhou New Vision, founded in 2014  and headquartered in Hangzhou, China, focuses on the development, manufacturing and supply of industrial lifting solutions. Thanks to our geographically advantageous location with well-connected logistics networks, we deliver dependable, high-performance hoisting equipment to customers worldwide. We have full experience in this industry for long time ,we have attend many exhbitions also .Now we have a team incharge of manufacturing and exporting , thanks for clients support , our business increas.

We focus on bring benfits and advantages  to clients so both of us can grow together.



Q1: Is 250 kg the maximum load?

A:No.We have capacity from 2500kgs to 2000kgs

Q2:Can the lift height be changed?

A: The standard span is 3 to 9 m. Tell us the exact the hight you need when ordering so the check if can customorized.

Q3: Fixed or travelling?

A: This version is fixed. If the load has to move along a beam, ask for the same capacity on a manual or motorised trolley.

Q4: Is it suitable outdoors?

A: The IP55 motor and coated chain cope with dusty and damp conditions, but for prolonged outdoor use a rain cover and more frequent chain inspection are advisable.

Q5:What upkeep does it need?

A: Periodic checks of the chain, hook and safety latch, plus the lubrication schedule in the manual, are normally enough.

Q6: What is warranty period? What spare parts are included within warranty?

 12 months since BL date ,not inculding fast moving parts.

Q7:Does it come as a single-speed or a dual-speed unit?

This 250 kg version is dual-speed

Q9:How is the load chain protected against wear and corrosion?

The chain is surface-hardened, galvanised, and then given an extra finish so that grit, moisture and aggressive air do less damage.

Q10:How hard can it be worked?

The motor's 60% power continuity rating supports frequent lifting cycles, with the balance of time allowed for cooling.
