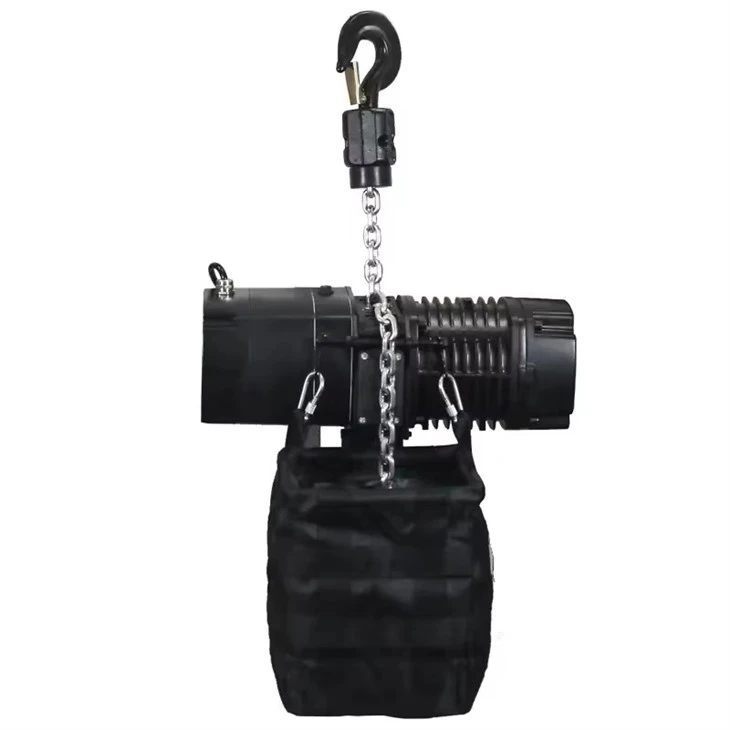

1 ton stage electric hoist
The 1-ton stage electric hoist is a dedicated lifting device specially designed for performances, stage construction and the hoisting of lighting and sound systems. It is suitable for various cultural and artistic activity venues such as theaters, concerts, exhibitions and conference centers.
The whole machine is equipped with high-performance motors, ensuring smooth lifting and strong power output. Combined with high-strength alloy steel chains, it remains stable and reliable even during high-altitude operations. The 1-ton stage electric hoist is renowned for its lightness, flexibility and safety. It is an ideal solution for setting up large-scale stage art systems, mobile hanging of lighting fixtures and audio equipment.
Features
- 24 volt push button controller with cable strain relief system for durability and reliability
- All steel construction
- compliant push button control pendants
- Durable powder coat finish
- Grade 80 Load Chain- Grade 80 black oxide coated load chain for durability
- Limit Switches- Upper and lower limiting switches increase safety by preventing the load chain from over traveling
- Sealed Gear Train- Maintenance-free gear train incorporates a sealed oil bath that eliminates upkeep
- Thermal overload protection
| Technical parameters | ||||||||||
| Model | Capacity | Test load | Protection | Classification | Lifting speed | Motor | Load chain | Load chain | Net weight | Chain |
| (t) | (t) | evel | FEMISO | (m/min) | (kw) | (mm) | fals | (kg) | weight/M | |
| SNN-S1-0.5 | 0.5 | 0.6 | IP55 | 2m/M5 | 26 | 2 | D6.3×19 | 1 | 47.5 | 0.86 |
| SNN-S1-1 | 1 | 1.2 | IP55 | 2m/M5 | 16 | 2 | φ8×24 | 1 | 51 | 1.38 |
| SNN-S1-2 | 2 | 2.4 | IP55 | 2m/M5 | 6 | 3 | φ8×24 | 2 | 52 | 1.38 |
