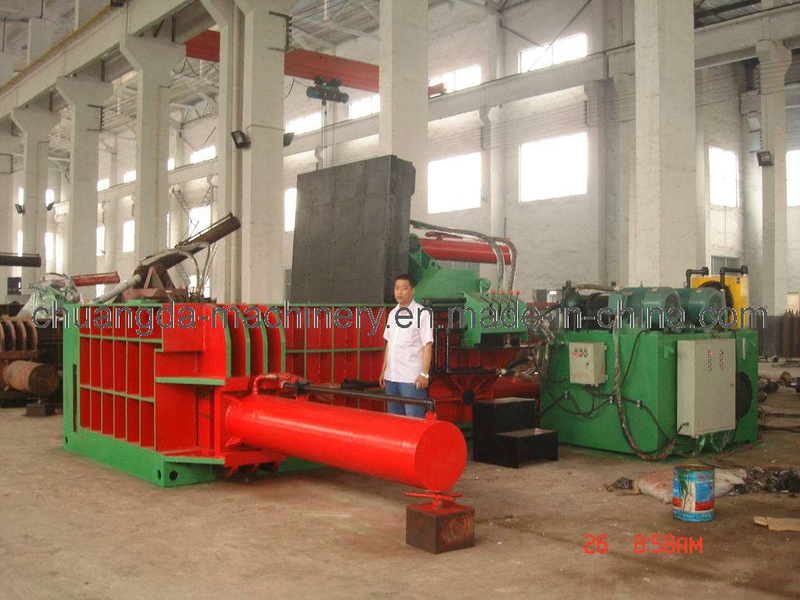

Scrap Metal Baler (YD2500C)

This machine is a big-scale waste metal processing equipment that is suitable for handing a large amount of waste steel. It is used to cold compress the waste metal materials with a thickness below 6-10mm such as waste residue metal materials, waste oil bucket and dismounted automobile shells into package and lump, in order to facilitate transportation and charging into furnace. It applies PLC control and has auto and semi-auto operation functions. The quick-action technology, which is unique in China, is applied to cut the motor power consumption nearly by half, save electrical power and increase the efficiency.
  • Chuangda
  • 8462919000
  • Press Box Size(L*W*H): 2000mm*1750mm*1200mm
  • Bale Size: 500mm*500mm
  • Bale Weight: 300kg-500kg
1. Full automatic hydraulic baler 2. Can press scrap thickness under 3mm 3. Turn over bale Our machine has fast technolegy, which run faster than normal balers. 1. Product brief introduction: This machine can cold compresses waste automobile shells, Waste buckets, waste copper and aluminum into rectangle lumps. The package is discharged from the front and secondary compression is applied. The operation efficiency is high and lump lengths are identical and uniform. The hydraulic system applies an integrated valve block and the product is stable and reliable in technical performance.


2. Specification:
Model Nominal pressure (ton) Material box size
(mm)		 Baler size   (mm) Productivity(kgs/h) Bale discharging mode Motor(KW) Machine weight (ton)
YD-630A 63 1000*600*500 200*200 500-750 Turn over 11 4.5
YD-1000 100 1000*700*500 250*250
220*220
200*200		 750-1000 Turn over 11 5.5
YD-1000A 100 1100*500*500 200*200 750-1000 Front bale 11 5
YD-1300B 130 1200*700*550 300*300
250*250		 1000-1800 Turn over 15 6
YD-1300C 130 1200*800*550 300*300
250*250		 1500-2000 Turn over 15 6.5
YD-1350 135 1400*600*600 600*250 1500-2000 Front bale 18.5 7
YD-1600 160 1200*800*550 300*300 1500-2000 Turn over 18.5 7
YD-1600A 160 1600*800*800 350*350 1750-2250 Turn over 22 12
YD-2000 200 1600*1200*800 350*400 2000-2500 Turn over
side push		 30 18
YD-2500 250 2000*1200*1000 450*450 2250-3500 Turn over
Side push		 30 20
YD3150 315 2000*1400*1200 450*500 3750-4500 Side push 37 32
YD4000 400 2000*1600*1200 500*500 4500-6250 Side push 45 40
YD-4000A 400 2500*1600*1200 600*500 7500-10000 Side push 45 50
