1. Brief introduction: This alligator shear is used for cold shearing of various sectional shape metal and cutting of various sepcified lengths of steel in rolling mill. It's designed with quick unit which can double the shearing speed. Improving 50% working efficiency and saving 50% electricity.
1. Complete set alligator shear, no need installation
2. Cutting pressure: 63tons

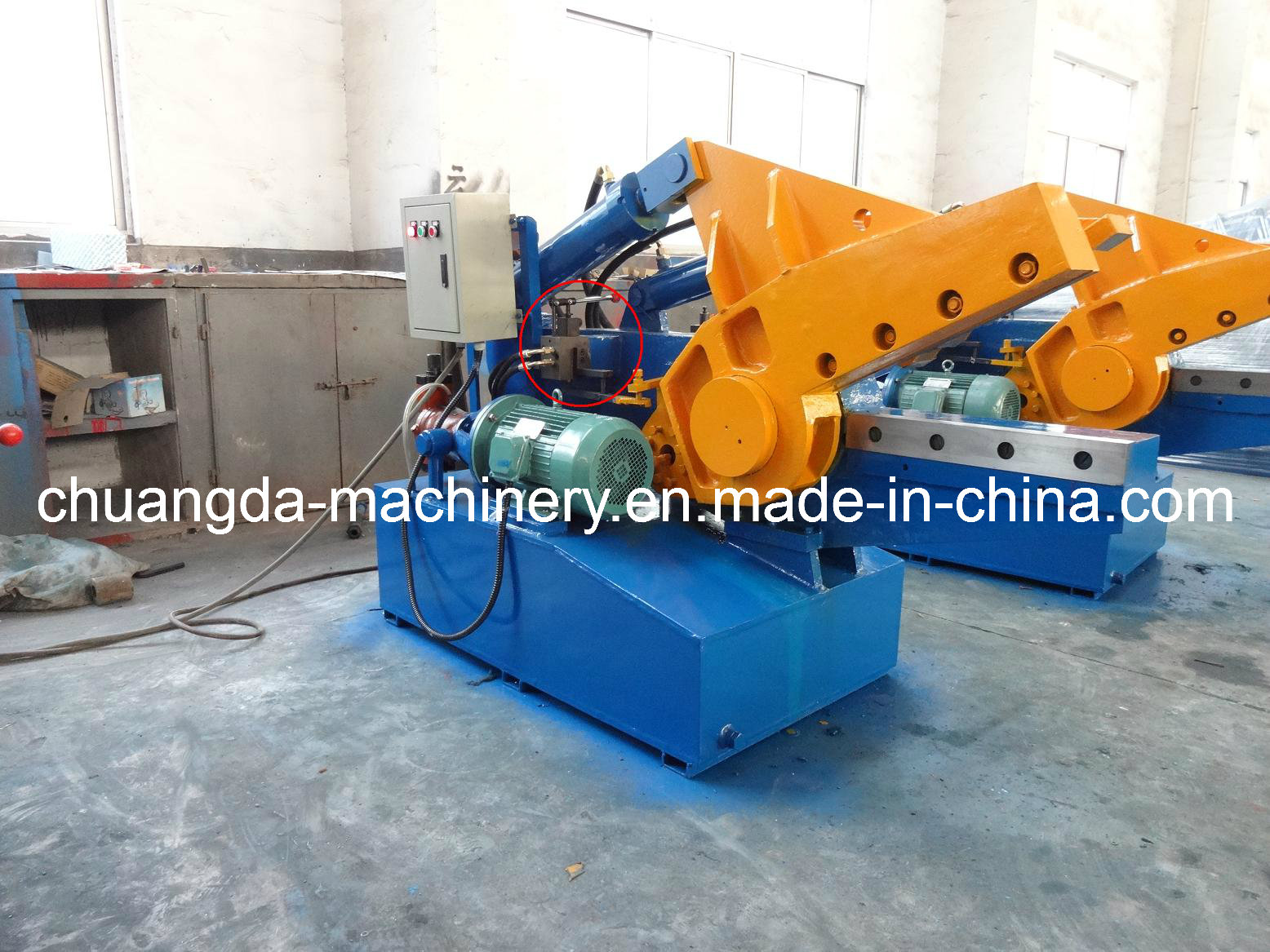

3. Cutting size: 20*200 Q08 is a new model for Alligator shear, we combine oil tank and pump and machine into 1PC, it's easier for install and transport. But many other factories make the oil tank and the machine spearately in 2 PCS, that means customer should assemble at home, sometimes it will caused mistakes or damages.
2. Characteristic: 1. It applies a hydraulic drive and pre-pressing unit and it is safe and reliable. 2. Two operation modes, that is, manual and automatic modes, are available. 3. Operating knife edge lengths come in many specifications, that is, 600mm, 800mm, 1000mm ect.
3. Specification:
| Sr.no | Type name | unit | Model or data |
| Main cylinder | Press cylinder |
| 1 | Nominal pressure | KN | 630 | 105 |
| 2 | Inner diameter of main cylinder | mm | Φ110 | Φ80 |
| 3 | Piston diameter | mm | Φ70 | Φ45 |
| 4 | stroke | mm | 300 | 110 |
| 5 | Max.pressure | Mpa | 20 |
| 6 | Electrical motor | 1set | 7.5KW |
| 7 | pump | 1set | 40YCY14-1B |
| 8 | Cutting speed | 14-25t/min(non load) |
| 9 | Cutting blade length | 600mm |
| 10 | Max.opening | 320mm |
| 11 | Hydraulic system | new type munaul valve |
| 12 | Operate way | Manual(have single cycling /auto cycling function) |
| 13 | Max. cutting force | (steel plate)20×200mm |
| 14 | Overall diamension | 2100×800×1550mm |
| 15 | Other | New type fast one pc model |
