Product introduction

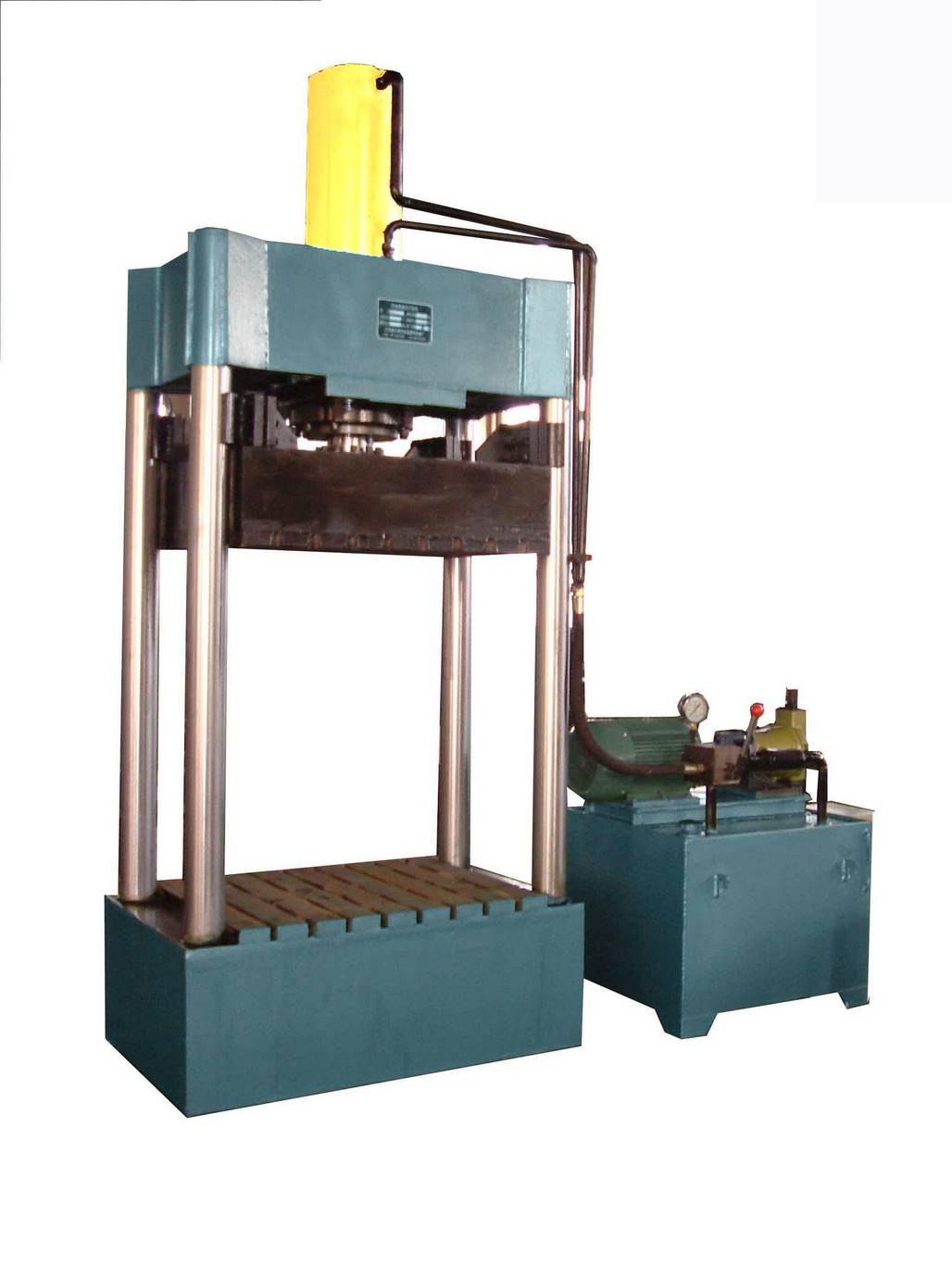

Hydraulic Paper Baler (FYD1000)

This machine is specially designed to pack relaxing materials such as cotton, feather, waste paper, yellow sheet paper, voile, tobacoo leaf, plastic, piece goods, weave bags, knitting floss, hemp, hemp bags, gloss bett, gross boll and soon. The packer is tight, trim, and goodlooking. The from of the door’s opening is different from the materials. There are several kinds of form, such as tri-doors, quarter-doors, quinary-doors and so on. Thereinto ,the quarter-doors form can be enlaced as“#”.
  • Chuangda
  • 8462919000
Quantity:
This machine is used for the packing of light foam types of materials such as plastic Film and waste paper and clothes Detailed Product Description This machine is used for the packing of light foam types of materials such as plastic Film and waste paper under the normal state. The material volumes are reduced Dramatically and more materials can be stuffed into the same space, so as to Achieve smaller transportation volume, save transportation cost and increase profit For the enterprises. Product Characteristics: 1. This machine applies hydraulic drive. It is convenient in installation, simple In operation and reliable in use. 2. The door is opened hydraulically to remove the package elasticity and discharge The package smoothly, which is safe and reliable. 3. This machine is equipped with a quick-action device. Its packing speed is one Time higher than that of other equipment of the same type made by other manufacturers. The product is characterized by high working efficiency and low energy consumption And is suitable for repeated material charging and packing for light foam Materials.

Sr.no type name UNIT Model or parameters
1 Norminal pressure KN 1000
2 Inner diameter of  MAIN DYLINDER mm φ200
3 Piston diameter mm φ120
4 Stroke mm 1200
8 Pressing head size mm 1100*550
9 Material box size mm 1100×550×1600
10 Bale size mm 1150×600×400-1000
11 Electrical motor model Y160M-4
12 Electrical motor power KW 153PH380V/50Hz
13 Oil pump model 63YCY14-1B
14 System pressure Mpa 20
15 Max distance from pressing head to working table mm 1600
16 Operation way Manual direction valve control
17  Bundle way Manual
18 Bundle lines Lines 5
19 Machine frame
Frame structure
20 Others
Electrical components use SIEMENS
