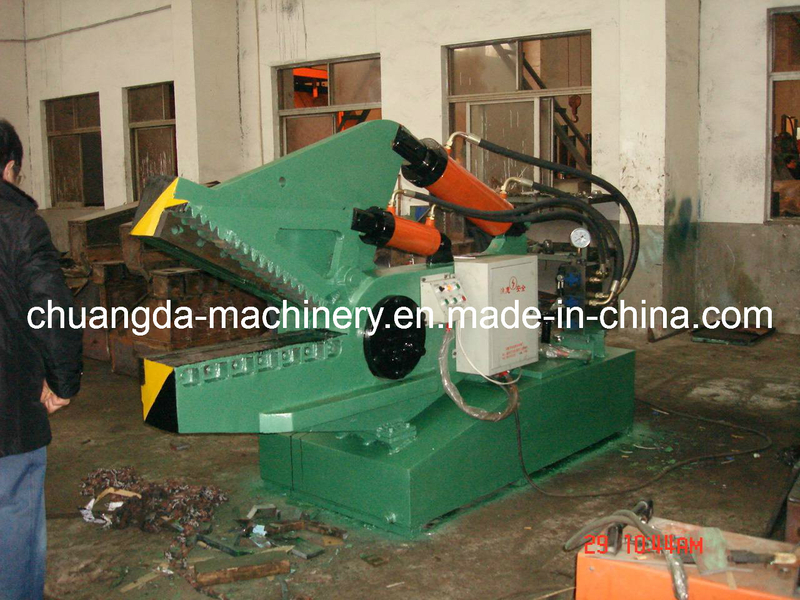

Hydraulic Metal Shear (Q08-160)

This hydraulic metal cutter is used for cold shearing of various sectional shape metal and cutting of various sepcified lengths of steel in rolling mill. It's designed with quick unit which can double the shearing speed. Improving 50% working efficiency and saving 50% electricity.
  • Chuangda

  • 8462399000

  • Trademark: Chuangda
  • Packing: Seaworthy
  • Origin: China
Q08--160A:
1. Blade length 600mm, 15kw hyraulic metal shear
2. Complete set design
3. Easy for transportation and installation
1. Brief introduction: This hydraulic metal cutter is used for cold shearing of various sectional shape metal and cutting of various sepcified lengths of steel in rolling mill. It's designed with quick unit which can double the shearing speed. Improving 50% working efficiency and saving 50% electricity.
2. Characteristic: 1. It applies a hydraulic drive and pre-pressing unit and it is safe and reliable. 2. Two operation modes, that is, manual and automatic modes, are available. 3. Operating knife edge lengths come in many specifications, that is, 600mm, 800mm, 1000mm etc. 3. Specification:
3. Specification:
Model Max. Cutting Force(ton) Blade Length
(mm)
Shear Opening (mm) Max. Cutting Size (mm) Shearing Frequency (times/min) Motor(KW)
Q08-63 63 600 320 20*200 14-25 7.5
Q08-100 100 600 320 30*200 14-25 7.5
Q08-125 125 600 320 30*250 12-25 11
Q08-160A 160 600 340 30*320 11-25 15
Q08-160B 160 700 380 30*320 11-25 15
Q08-160C 160 800 420 30*320 11-25 15
FJD-2000 200 800 400 30*400 12-20 18.5
FJD-2500 250 800 420 30*500 11-20 22
FJD-2500A 250 1000 440 30*500 11-20 22
FJD-3150 315 1000 440 30*650 8-15 30
FJD-4000 400 1200 500 30*800 7-15 37
FJD-6000 600 1600 700 40*800 5-12 45
