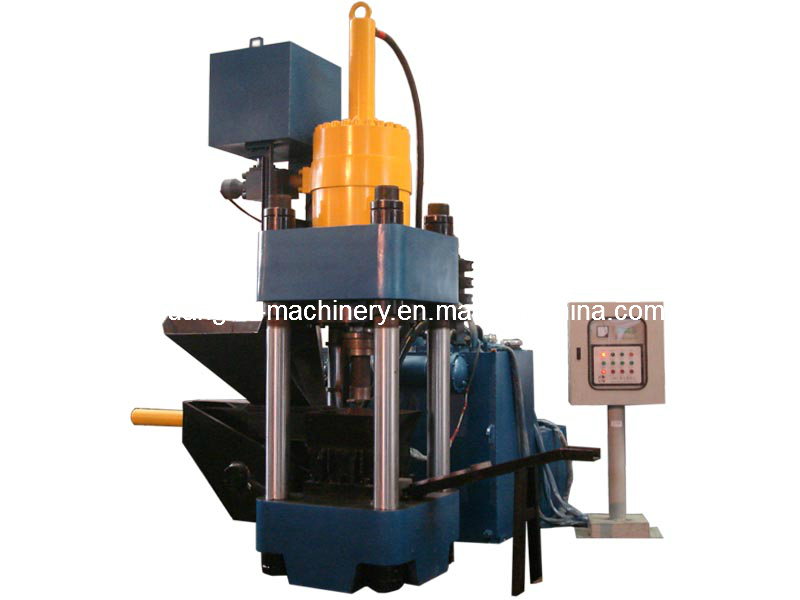

Hydraulic Briquetting Press (SBJ2500)

Briquetting press
1. Patent no: ZL200320325.0
2. with fast speed technolegy
3. Automatical control
1. Brief introduction: This hydraulic briquetting press can coldly compress powder and grain shaped cast steel chips, steel chips, Sponge iron, copper chips and aluminum chips into column-shaped lump with a density of >5T/M3, PLC control with automatic material feeding, lump discharging and high efficiency. (containing no bonding reagents). The compressed lumps can substitute raw materials and be used directly. This type of machine is suitable for customers that handle moderate iron chip amount The output of each shift is 16 to 20ton. The model is fit for big amount ferrous chip. It gains three patents in the country and our main customers are in Asia area. This kind of machine is produced in China professionally Characteristics: 1. This machine applies a hydraulic drive with low noise. It is safe and reliable. 2. This machine applies a vertical framework structure, occupies small area and is safe and reliable. 3. PLC control with automatic material feeding, lump discharging and high efficiency.
2. Specification:

Model	Cyl. Force(KN)	Briquet Size (Dia*H) (mm)	Briquet Density (T/m3)	Blocks (qty/min)	Briquet Weight (kgS)	Production Rate(T/SHIFT)	Motor(KW)
SBJ-1500A	150	80*(60-80)	> 5	3	2-2.5	3-4	15
SBJ-2000	200	80*(60-80)	> 5	3	2.5-3	4-5	18.5
SBJ-2000A	200	80*(60-80)	> 5	4	2.5-3	4-5	15
SBJ-2000B	200	80*(60-80)	> 5	5	2.5-3	4-6	15
SBJ-2500	250	(80-90)*(60-80)	> 5.2	4	2.5-3	4-6	18.5
SBJ-2500B	250	(80-90)*(60-80)	> 5.2	5	2.5-3	5-6	18.5
SBJ-2500C	250	(90-110)*(70-100)	> 5.2	5	3-4	6-7	18.5
SBJ-3150B	315	(90-110)*(70-100)	> 5.5	6	3-4	8-12	30
SBJ-3600	360	(100-140)*(70-100)	> 5.5-6	5	3.5-5	10-12	30
SBJ-5000	500	(120-150)*(70-100)	> 5.5-6	5	5-6	16-20	37
SBJ-6300	630	(130-160)*(100-120)	> 5.5-6	4	6-10	20-30	37
