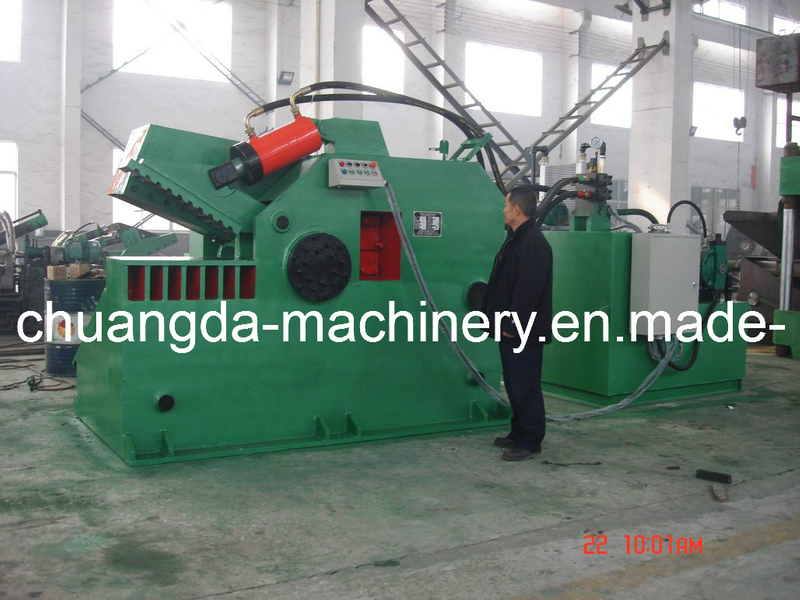

Hydraulic Alligator Shear (FJD6000)

1. Cutting thickness 60mm, biggest alligator shear
2. with wind cooler, 45KW motor
3. Oil pump 250YCY14-1B
1. Brief introduction: This scrap metal shear is used for cold shearing of various sectional shape metal and cutting of various sepcified lengths of steel in rolling mill. It's designed with quick unit which can double the shearing speed. Improving 50% working efficiency and saving 50% electricity.
2. Characteristic: 1. It applies a hydraulic drive and pre-pressing unit and it is safe and reliable. 2. Two operation modes, that is, manual and automatic modes, are available. 3. Operating knife edge lengths come in many specifications, that is, 600mm, 800mm, 1000mm etc.
3. Specification:

Model	Max. Cutting Force(ton)	Blade Length (mm)	Shear Opening (mm)	Max. Cutting Size (mm)	Shearing Frequency (times/min)	Motor(KW)
Q08-63	63	600	320	20*200	14-25	7.5
Q08-100	100	600	320	30*200	14-25	7.5
Q08-125	125	600	320	30*250	12-25	11
Q08-160A	160	600	340	30*320	11-25	15
Q08-160B	160	700	380	30*320	11-25	15
Q08-160C	160	800	420	30*320	11-25	15
FJD-2000	200	800	400	30*400	12-20	18.5
FJD-2500	250	800	420	30*500	11-20	22
FJD-2500A	250	1000	440	30*500	11-20	22
FJD-3150	315	1000	440	30*650	8-15	30
FJD-4000	400	1200	500	30*800	7-15	37
FJD-6000	600	1600	700	40*800	5-12	45
