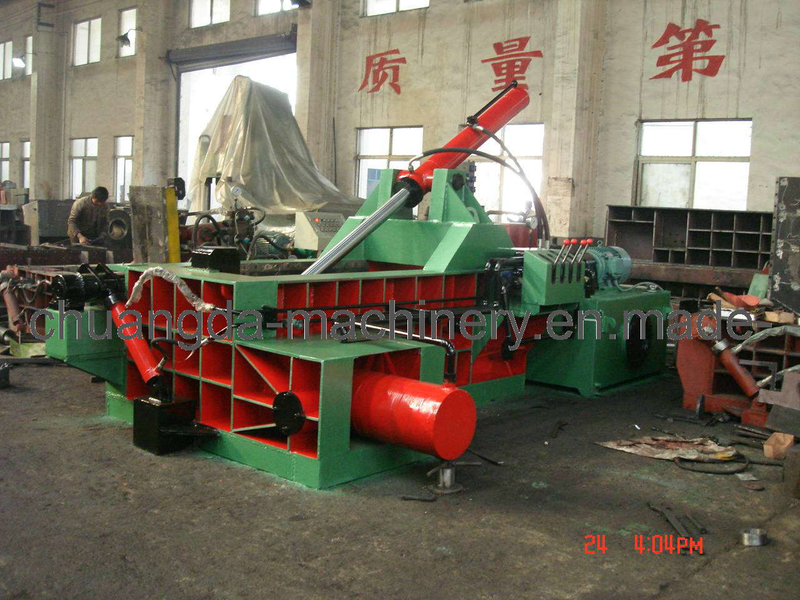

Ferrous Scrap Metal Baler /Ferrous Baler (YD1600A)

Hydraulic waste metal baler
1. Can press scrap thickness under 3mm
2. Turn over bale
3. Manual control

Our machine has fast technolegy, which run faster than normal balers.

1. Product brief introduction:

This hydraulic waste metal baler can cold compresses the light thin materials of dismounted automobile shells,
Waste bucket, waste copper and aluminum into rectangle lumps. The package is discharged from the front and secondary compression is applied. The operation efficiency is high and lump lengths are identical and uniform. The hydraulic system applies an integrated valve block and the product is stable and reliable in technical performance.

2. Specification:

Model	Nominal pressure (ton)	Material box size   (mm)	Baler size   (mm)	Productivity(kgs/h)	Bale discharging mode	Motor(KW)	Machine weight (ton)
YD-630A	63	1000*600*500	200*200	500-750	Turn over	11	4.5
YD-1000	100	1000*700*500	250*250 220*220 200*200	750-1000	Turn over	11	5.5
YD-1000A	100	1100*500*500	200*200	750-1000	Front bale	11	5
YD-1300B	130	1200*700*550	300*300 250*250	1000-1800	Turn over	15	6
YD-1300C	130	1200*800*550	300*300 250*250	1500-2000	Turn over	15	6.5
YD-1350	135	1400*600*600	600*250	1500-2000	Front bale	18.5	7
YD-1600	160	1200*800*550	300*300	1500-2000	Turn over	18.5	7
YD-1600A	160	1600*800*800	350*350	1750-2250	Turn over	22	12
YD-2000	200	1600*1200*800	350*400	2000-2500	Turn over side push	30	18
YD-2500	250	2000*1200*1000	450*450	2250-3500	Turn over Side push	30	20
YD3150	315	2000*1400*1200	450*500	3750-4500	Side push	37	32
YD4000	400	2000*1600*1200	500*500	4500-6250	Side push	45	40
YD-4000A	400	2500*1600*1200	600*500	7500-10000	Side push	45	50
