| Sr.no | type name | UNIT | Model or parameters | |
| The broke cylinder | Discharging door oil cylinder | |||
| 1 | Nominal pressure | KN | 3150 | 300 |
| 2 | Inner diameter of main cylinder | mm | Φ400 | Φ125 |
| 3 | The piston rod diameter | mm | Φ280 | Φ70 |
| 4 | stroke | mm | 1000 | 250 |
| 5 | Maximum pressure | Mpa | 25 | |
| 6 | Working pressure | Mpa | 22 | |
| 7 | Material box size | mm | 1220x900x800 | |
| 8 | The size of broken down material | mm | ≤230x230 | |
| 9 | Discharging way | | Bottom-out | |
| 10 | motor | set | Y280M-6/37KW horizontal | |
| 11 | oil pump | set | 160MCY | |
| 12 | The control mode | PLC Program automatic/manual | ||
| 13 | cooling | CE-25 Air cooling | ||
| 14 | Oil tank capacity | 2500L | ||

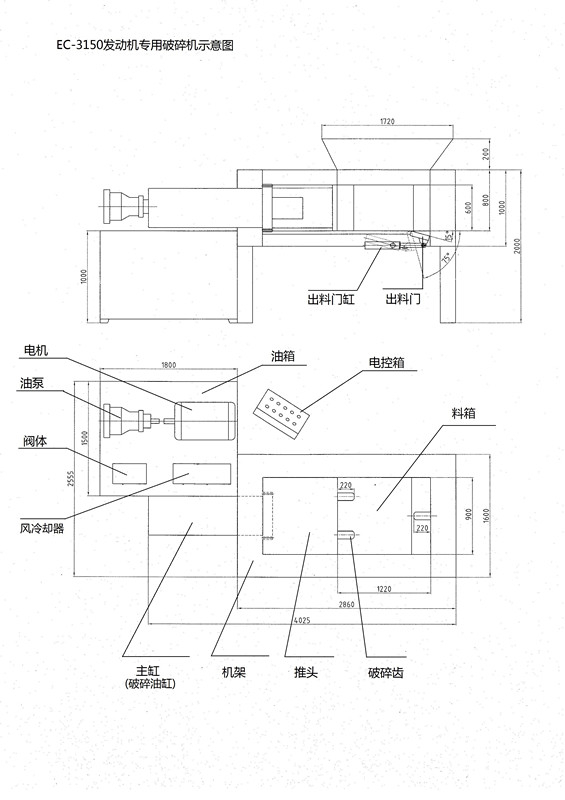

| 15 | Machine overall size | mm | Main body : 4025x1600x2400 Oil tank :1800x1500x1200 | |
| 16 | Loading | | 1*20GP | |
