Chuangda
8462919000

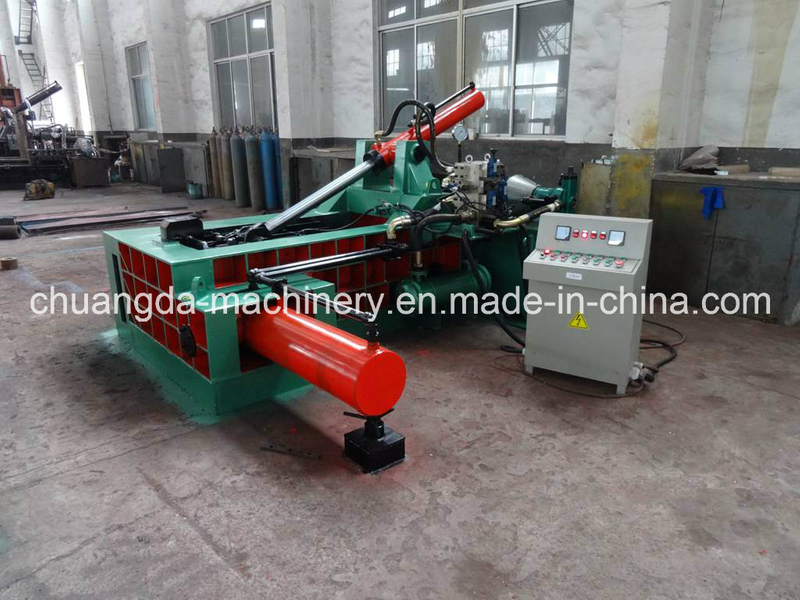

Hydraulic metal baler 1. Press scrap thickness under 3mm 2. Turn over bale, fast speed 3. PLC control 1. Brief introduction: This machine cold compresses material thickness under 3mm, like materials of dismounted automobile shells, waste bucket, waste copper and aluminum into rectangle lumps. The operation efficiency is high and lump lengths are identical and uniform. The hydraulic system applies an integrated valve block and the product is stable and reliable in technical performance. 2. Product characteristics: 1. The longest main cylinder applies quick-action technology and its operation efficiency is one time higher than that of the machines of the same type in China. 2. The machine for export is designed with integration of main machine and ydraulic System. It covers small area and does not need any installation. 3. The package is discharged from side way, The package is compact and nice. 4. Full automatic and with fast device
| Model | Nominal pressure (ton) | Material box size (mm) | Baler size (mm) | Productivity(kgs/h) | Bale discharging mode | Motor(KW) | Machine weight (ton) |
| YD-630A | 63 | 1000*600*500 | 200*200 | 500-750 | Turn over | 11 | 4.5 |
| YD-1000 | 100 | 1000*700*500 | 250*250 220*220 200*200 | 750-1000 | Turn over | 11 | 5.5 |
| YD-1000A | 100 | 1100*500*500 | 200*200 | 750-1000 | Front bale | 11 | 5 |
| YD-1300B | 130 | 1200*700*550 | 300*300 250*250 | 1000-1800 | Turn over | 15 | 6 |
| YD-1300C | 130 | 1200*800*550 | 300*300 250*250 | 1500-2000 | Turn over | 15 | 6.5 |
| YD-1350 | 135 | 1400*600*600 | 600*250 | 1500-2000 | Front bale | 18.5 | 7 |
| YD-1600 | 160 | 1200*800*550 | 300*300 | 1500-2000 | Turn over | 18.5 | 7 |
| YD-1600A | 160 | 1600*800*800 | 350*350 | 1750-2250 | Turn over | 22 | 12 |
| YD-2000 | 200 | 1600*1200*800 | 350*400 | 2000-2500 | Turn over side push | 30 | 18 |
| YD-2500 | 250 | 2000*1200*1000 | 450*450 | 2250-3500 | Turn over Side push | 30 | 20 |
| YD3150 | 315 | 2000*1400*1200 | 450*500 | 3750-4500 | Side push | 37 | 32 |
| YD4000 | 400 | 2000*1600*1200 | 500*500 | 4500-6250 | Side push | 45 | 40 |
| YD-4000A | 400 | 2500*1600*1200 | 600*500 | 7500-10000 | Side push | 45 | 50 |
